Understanding Network Protocols: HTTP, TCP/IP, UDP

Introduction

Network protocols are the fundamental rules that govern how data is transmitted across networks. They're like the languages that allow different devices to communicate effectively. This article dives deep into three of the most critical protocols in modern system design: HTTP, TCP/IP, and UDP, explaining how they work, their key differences, and when to use each.

Network Protocol Stack

TCP/IP: The Foundation of Internet Communication

What is TCP/IP?

The Transmission Control Protocol/Internet Protocol (TCP/IP) is the fundamental suite of protocols that powers the internet. It's not a single protocol but rather a collection of protocols that work together in layers. The two main components are:

1. TCP (Transmission Control Protocol): Handles the reliable delivery of data

2. IP (Internet Protocol): Manages addressing and routing of data packets

How TCP/IP Works

TCP/IP follows a four-layer model:

1. Link Layer: Handles physical connections (Ethernet, Wi-Fi)

2. Internet Layer: Manages addressing and routing (IP)

3. Transport Layer: Ensures reliable data delivery (TCP, UDP)

4. Application Layer: Interfaces with applications (HTTP, FTP, etc.)

TCP Three-Way Handshake

The TCP Three-Way Handshake

One of TCP's most important features is its connection establishment process, known as the "three-way handshake":

1. SYN: Client sends a SYN (synchronize) packet with an initial sequence number (x)

2. SYN-ACK: Server responds with a SYN-ACK packet, acknowledging the client's sequence number (x+1) and providing its own sequence number (y)

3. ACK: Client sends an ACK packet, acknowledging the server's sequence number (y+1)

This process ensures both parties are ready to communicate and establishes sequence numbers for tracking packets.

Key Features of TCP

1. Connection-oriented: Establishes a dedicated connection before data transfer

2. Reliable delivery: Guarantees that data arrives intact and in order

3. Flow control: Prevents overwhelming receivers with too much data

4. Congestion control: Adjusts transmission rates based on network conditions

5. Error detection and recovery: Detects and retransmits lost packets

TCP Packet Structure

TCP Packet Structure

Each TCP packet includes:

• Source and Destination Ports: Identify the applications at both ends

• Sequence Number: Orders packets and tracks how much data has been sent

• Acknowledgment Number: Indicates the next expected sequence number

• Flags: Control bits like SYN, ACK, FIN for connection management

• Window Size: Flow control mechanism indicating buffer capacity

• Checksum: Ensures data integrity

• Options: Additional features like maximum segment size

UDP: The Lightweight Alternative

What is UDP?

User Datagram Protocol (UDP) is a connectionless transport protocol that provides a simpler, faster alternative to TCP. While TCP prioritizes reliability, UDP prioritizes speed.

How UDP Works

UDP simply sends packets (called datagrams) to the recipient without:

• Establishing a connection

• Guaranteeing delivery

• Maintaining packet order

• Managing flow control

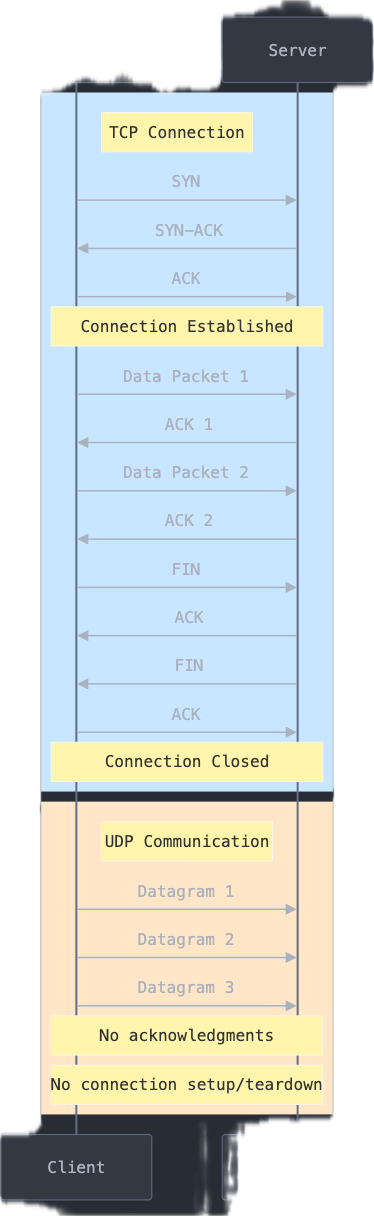

TCP vs UDP Communication

Key Features of UDP

1. Connectionless: No handshake required before sending data

2. Low overhead: Smaller header size and no connection management

3. Fast transmission: No waiting for acknowledgments

4. No guarantees: Packets may be lost, duplicated, or arrive out of order

5. No congestion control: Sends at a constant rate regardless of network conditions

UDP Packet Structure

UDP Packet Structure

UDP has a much simpler header than TCP with just four fields:

• Source Port: Identifies the sending application (optional, can be zero)

• Destination Port: Identifies the receiving application

• Length: Total length of the datagram (header + data)

• Checksum: Basic error detection (optional in IPv4, required in IPv6)

TCP vs. UDP: When to Use Each

TCP vs UDP Comparison
